The most important decisions in a solar farm project are made during concept design. This is the earliest technical phase of a solar farm project, where foundational decisions are established before significant capital has been committed.
Every decision made in concept design casts a shadow across the entire project lifecycle. An oversimplified yield assessment can cause a financial model to over-promise returns. A poorly considered grid connection strategy can add 18 months to the development timeline. A layout that ignores terrain drainage can trigger expensive civil redesign during construction.
This guide explains exactly what solar farm concept design delivers, which decisions it makes, and why the quality of this phase has a direct and lasting impact on project outcomes.
What Is Solar Farm Concept Design?
Solar farm concept design is the first formal engineering phase of a utility-scale solar project. It translates a site and a development opportunity into a technically grounded, commercially assessable project configuration.

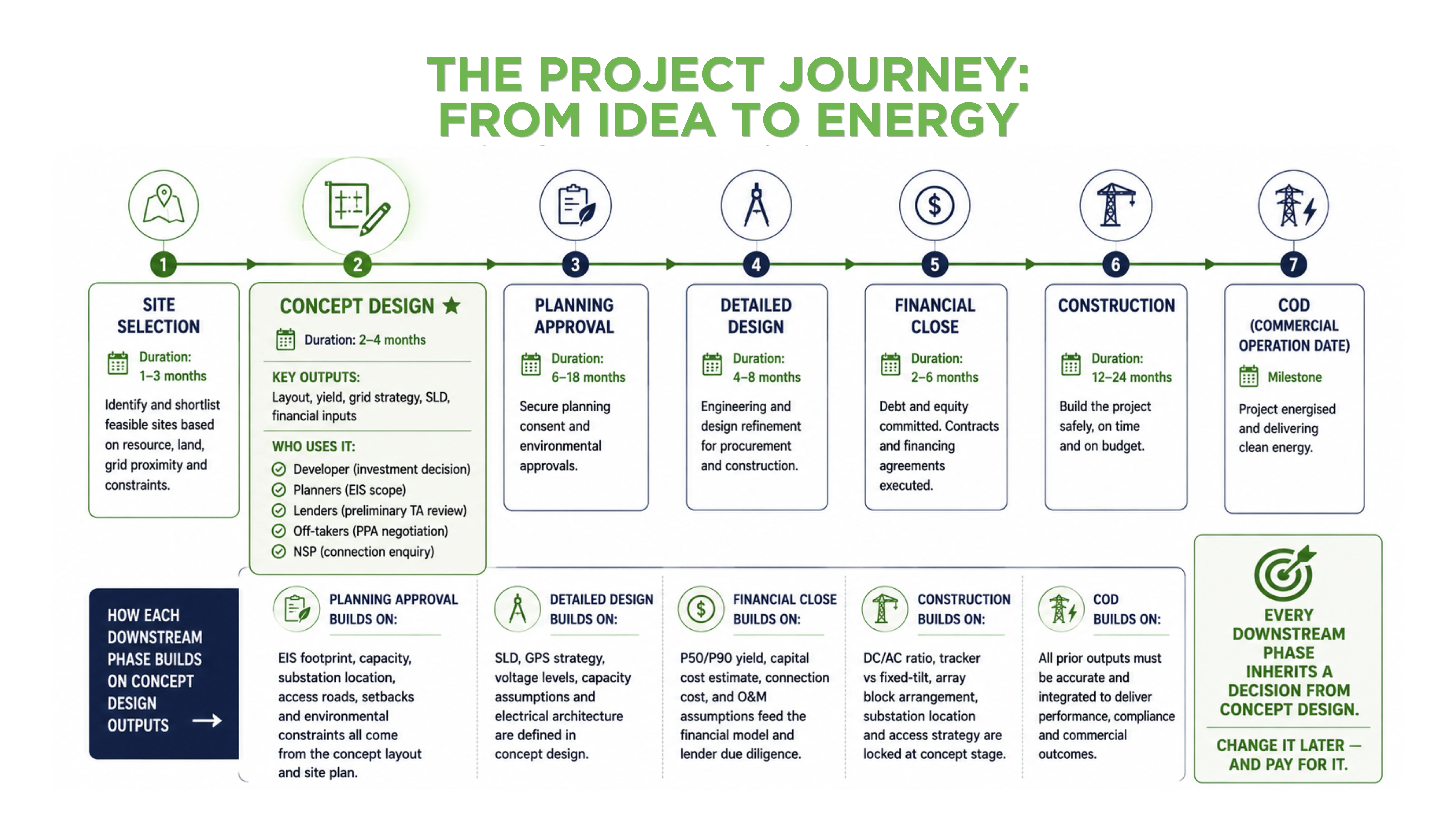

Utility-scale solar project development follows a structured but highly iterative seven-stage process. Concept design sits at the beginning of that sequence.
Its purpose is twofold.
- First, it produces the technical information needed to confirm that the project is viable. This means the site can accommodate the intended capacity, that the grid connection is achievable, and that the energy yield supports the financial model.
- Second, it produces the documentation needed to advance the project; planning applications, grid connection enquiries, lender technical due diligence, and Power Purchase Agreement negotiations.
What concept design is not: it is not a preliminary sketch. A well-executed concept design is a technically rigorous document produced by experienced solar engineers. The decisions it makes will be built on by every subsequent phase of the project.
What Does Concept Design Deliver?

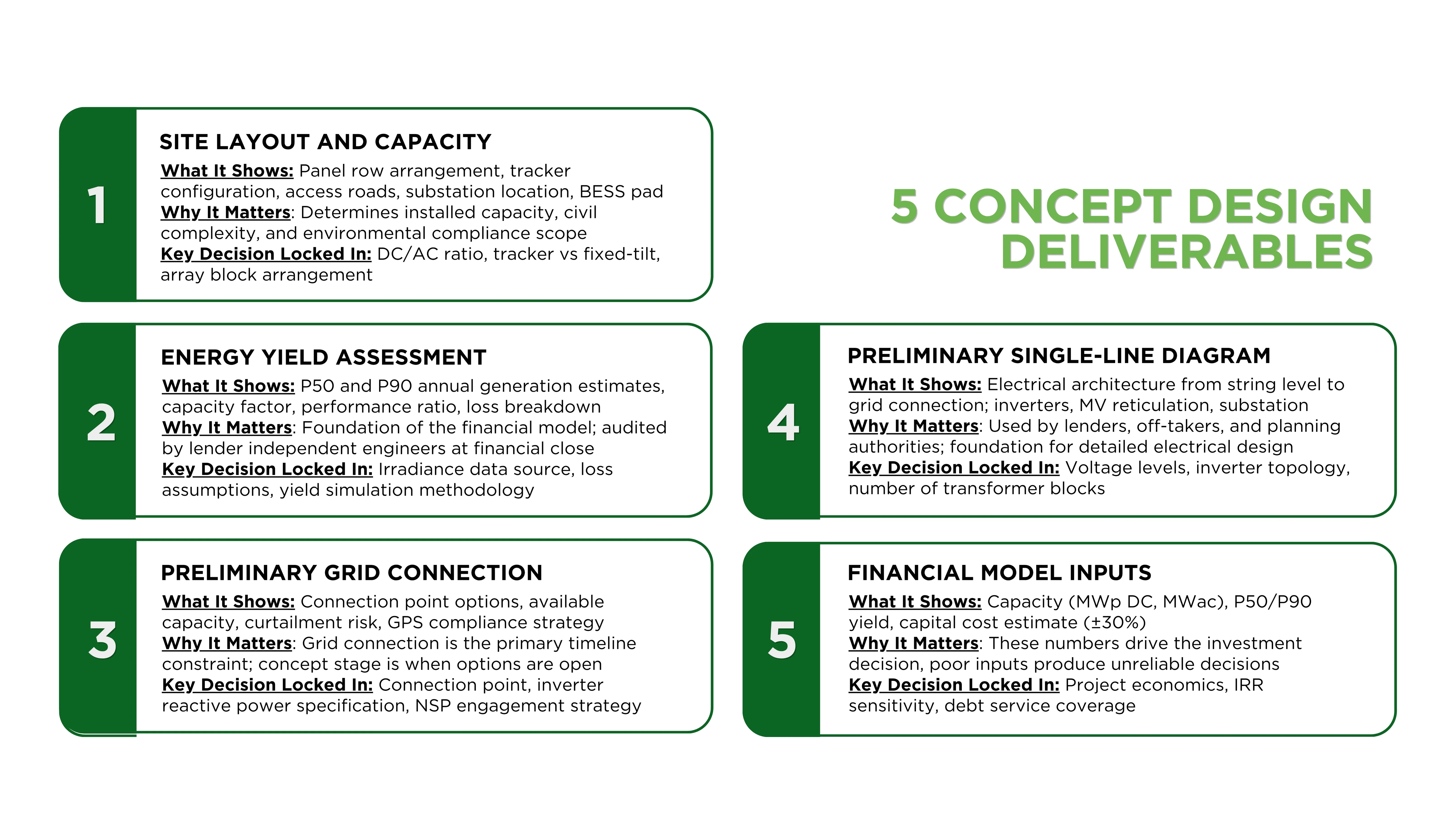

Site Layout and Capacity Determination
The first and most visible output of solar farm concept design is a preliminary site layout. This is a scaled plan showing the arrangement of PV module rows, access roads, inverter pads, substation location, fencing, exclusion buffers, and any BESS co-location.
It must simultaneously address:
- Terrain and Grading Constraints: Single-axis tracker systems require consistent pile depths and tolerate limited cross-slope. Concept design identifies which portions of the site are compatible with tracker installation and which require fixed-tilt design, significant earthworks, or exclusion. If the calculated yield falls short of targets, the layout may need to be adjusted or re-optimised before breaking ground.
- Environmental Exclusion Zones: Areas of native vegetation, riparian buffers, mapped heritage sites, and ecological sensitive areas must be identified and excluded from the layout. An accurate concept layout avoids development of areas that will be excluded during the planning approval process, preventing the rework that occurs when the planning-stage EIS boundary differs from the concept design footprint.
- Electrical Collection Topology: The concept layout establishes the string and array configuration, inverter type and positioning, medium-voltage reticulation routing, and substation location. These electrical design decisions are closely interdependent with the physical layout.
- Installed Capacity and DC/AC Ratio: The concept design determines the project's nameplate AC capacity and the DC/AC ratio. A higher DC/AC ratio captures more energy during shoulder periods of the day but increases clipping losses at peak irradiance. Optimising this ratio for the specific site irradiance profile and intended revenue strategy is a concept design decision.
Energy Yield Assessment
The energy yield assessment is the technical foundation of the financial model. It answers the fundamental question: how much electricity will this solar farm produce, over what range of outcomes, and with what confidence?
A concept-stage energy yield assessment uses satellite-derived irradiance data validated against available ground measurement data, combined with simulation tools to model the project's expected annual generation. The key outputs are:

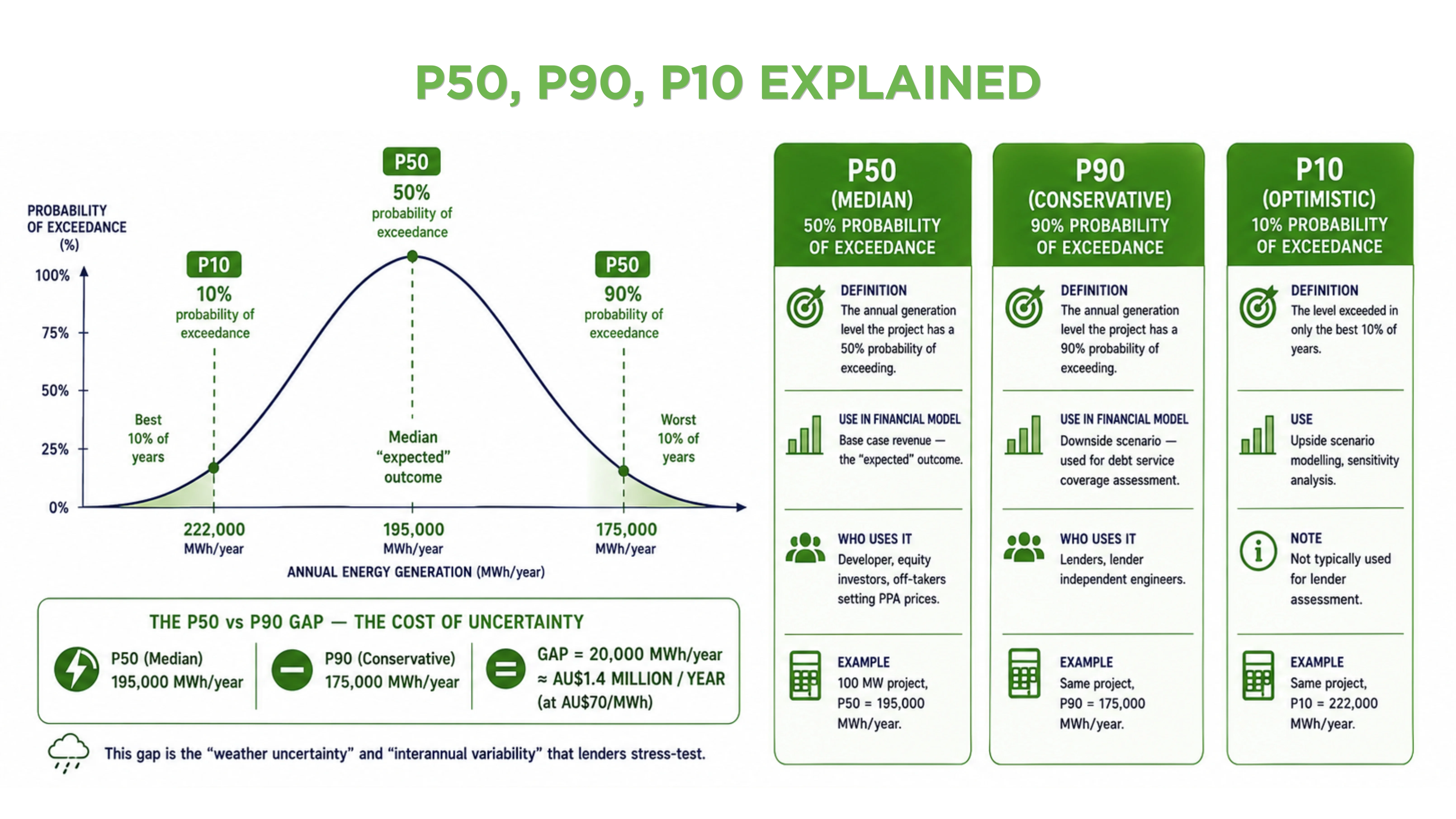

- P50 Estimate: The median expected annual generation used as the base-case revenue assumption in the financial model.
- P90 Estimate: The output the project has a 90% probability of exceeding. Lenders typically size debt to ensure the project can service its obligations even in a P90 generation year.
- Performance Ratio and Capacity Factor: The ratio of actual output to theoretical maximum output, and the annual output as a percentage of nameplate capacity operating continuously.
- Shading and Loss Analysis: Quantification of energy losses from inter-row shading, soiling, inverter clipping, cable losses, transformer losses, and system availability. These loss assumptions are audited by lender independent engineers and must be defensible at concept stage.
Preliminary Grid Connection Assessment
Grid connection is the single most critical constraint on solar farm project viability in Australia's current market. With over 53 GW progressing through AEMO's connection queue as of mid-2025, the sites with available grid capacity and manageable connection costs are no longer abundant. Concept design produces a preliminary grid connection assessment that addresses:
- Connection Point Identification: Using AEMO's Connection Scorecard, NSP network maps, and the Integrated System Plan (ISP), the assessment identifies the most viable transmission or sub-transmission connection points for the project capacity.
- Curtailment Risk Assessment: Grid-constrained regions in western NSW, northwest Victoria, and parts of South Australia have experienced curtailment rates above 25% on some sites in 2024. AEMO forecasts 35%+ curtailment for new solar farms in some Victoria and SA zones by 2027. Concept design must quantify this risk and incorporate it into the energy yield and financial model.
- Indicative GPS Compliance Strategy: For projects above 5 MW connecting to the NEM, the concept design must establish the preliminary GPS compliance approach. This shapes inverter and transformer specification and flags any GPS requirements likely to need negotiated access standards.
- Preliminary Connection Cost Estimate: A rough order of magnitude connection cost is required for the financial model at concept stage. This covers connection works, potential network augmentation contributions, NSP fees, and AEMO registration costs.
Preliminary Single-Line Diagram
The preliminary single-line diagram (SLD) is the electrical architecture drawing that shows the project's high-level electrical configuration.
The concept-stage SLD establishes the electrical design architecture: how many inverter blocks, at what voltage level, with what transformer arrangement, connecting to the grid at what voltage.
The SLD is used at concept stage by lenders, off-takers, and planning authorities to understand the project's electrical configuration, and it forms the foundation for the more detailed SLD produced during preliminary and detailed design.
Preliminary Financial Model Inputs
Concept design directly produces the technical inputs that populate the project's financial model:
- Installed capacity (MWp DC and MWac)
- P50 and P90 annual energy yield (MWh/year)
- Performance ratio and capacity factor
- Estimated capital cost per MW (using concept-level bill of quantities)
- Indicative connection cost
- Operating cost assumptions (O&M per MWac)
The quality of these inputs determines the reliability of the financial model. A concept design that overstates yield, underestimates connection costs, or assumes an optimistic curtailment factor will produce a financial model that misleads investment decisions.
How Does Concept Design Quality Determine Project Outcomes?
The decisions made during concept design are not easily reversed later. Early access to engineering-grade design intelligence enables teams to iterate layouts 10-20× faster while maintaining buildable accuracy.
Here is what happens when concept design is inadequate:
- Yield assumptions fail independent engineering review. Lender IEs audit the energy yield assessment at financial close. A concept-stage yield model built on aggressive assumptions is returned for revision, delaying financial close and eroding investor confidence.
- Grid connection strategy is misaligned with GPS requirements. Inverters or transformers specified without concept-stage GPS compliance assessment may not deliver the required reactive power capability at the connection point. Discovering this after procurement is extraordinarily expensive.
- Layout is incompatible with the EIS footprint. A concept layout that ignores environmental exclusion zones produces a planning application inconsistent with the actual developable area. The EIS scope is set against the concept design footprint.
- Financial model inputs are unreliable. Capital cost estimates at concept stage carry a typical accuracy range of ±30%. If concept design underestimates civil complexity, connection costs, or equipment quantities by more than this tolerance, the financial model supporting the investment decision is materially wrong.
